Self nesting#
Warning
This site is Work in Progress.
ToDo:
- add description of particle transfer
- add ocean-coupling related descriptions if necessary
General Features#
See the guide section for general features and usage of the self-nesting.
Nesting modes#
Nesting data transfer between parent and child models can be made in two alternative modes:
-
One-way means that children get solution data from their parents for setting boundary conditions on their nested boundaries but parents do not use any solution data from their children
-
Two-way means that also parents use solution data received from their children to modify the parent solution in the area occupied by a child domain using so-called post-insertion procedure (Clark and Hall, 1991)
In case of two-way coupling and cascading arrangement of more than one nested domain, the order of data-transfer operations (from parent to child and from child to parent) can be made in three alternative orders:
- cascade: first from parent to child consequently all the way down to the lowest level child and then from child to parent consequently all the way up to the root level
- overlap: simultaneous parent to child operations and child to parent operations
- mixed (default): simultaneous operations from parent to child and consequent operations from child to parent
Cascade is following the formally correct order of operations and it is the slowest data-transfer mode because it involves more waiting time than the other modes. Overlap is the fastest one, but it ignores the information transferred on previous stages of the cascade. Mixed is the default and the recommended data-transfer mode as it is faster than cascade and does not ignore the data anterpolated on the previous stages of the cascade. In practice, this is only important in the child to parent transfer (anterpolation) in which 3-D data is substituted to the parent domain while in the parent to child transfer this is not critical because the data is only substituted on the child boundaries which are located in different places on different-level nested domains within the cascade.
Child boundary conditions on the nested boundaries are set by interpolation which is described and discussed by Hellsten et al. (2021). Also the child-data post-insertion to parent (called anterpolation), and the phases of the time-step algorithm on which these actions take place, as well as some other features are reported in detail in Hellsten et al. (2021). It should be noted that the interpolation and anterpolation operations are performed for the intermediate velocity field, i.e. before the pressure-correction step. The reason for this is that otherwise, a second pressure-correction step would have been needed for the anterpolated fields and this would be computationally very costly.
Overall code arrangement#
The nesting data-transfer pattern is complicated since both child and parent models are internally parallellized and their subdomain divisions are generally different and non-matching. Therefore, a sending process typically has to send data to more than one receiving processes, a receiving process has to receive data from more than one sending processes, and subdomains may be only partially involved in the transfer. This is illustrated in Figure 1 by a simple example. This complicated data-transfer pattern is implemented in the Palm Model Coupler (PMC). It is largely based on a hierarchy of defined data types and creative use of pointers.

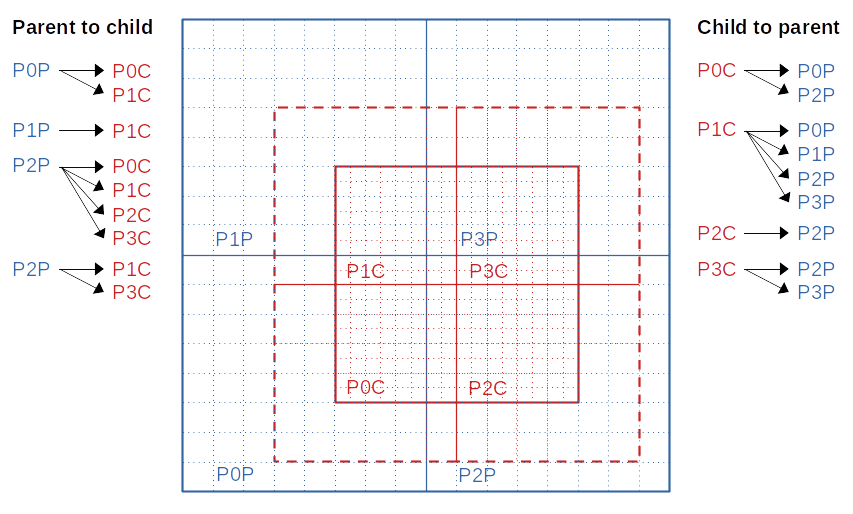

Figure 1: A simple example of the data transfer patterns
between parent and child on horizontal plane. Blue color represents
parent and red child. The designations like P0P and P0C stand for
process zero of parent and process zero of child, respectively, and so
on. The list on the left side shows which child processes each parent
process sends data, and the list on the right side indicates which
parent processes each child process sends data. Gridlines are drawn as
thin dotted lines and the thin solid lines are subdomain borders. The
red dashed rectangle shows the full horizontal extent of the child's
parent-grid arrays.
The data transfer is based on the parent grid. A parent only sends and receives data while interpolation from parent to child grid and anterpolation from child to parent grid are always made by child. This significantly reduces the amount of data to be transferred. Children have so-called child's parent-grid arrays which are defined in the parent grid and span over the child-occupied subvolume of the parent domain with two layers of ghost nodes beyond the outer boundaries but not beyond the internal boundaries.
PMC consists of the PMC core including five modules, the PMC-interface
module, and the PMC-particle interface module. The PMC core is
connected to the rest of the code through the PMC interface only. The
PMC core modules do not access any other modules than other PMC
modules with the exception of module kinds, which includes the data
type kind-definitions. The PMC module source-code files are:
pmc_interface_mod.f90
pmc_particle_interface.f90
pmc_general_mod.f90
pmc_handle_communicator_mod.f90
pmc_parent_mod.f90
pmc_child_mod.f90
pmc_mpi_wrapper_mod.f90
The PMC core has not been originally developed for PALM but for global
to regional climate- and weather forecast model coupling, and it has
been originally written in the C-language, and only later, during the
PALM-nesting development it was translated to Fortran. Therefore it
looks very different compared with other PALM source
code. Therefore the PMC source code is described here in more detail
than other parts of the PALM code. The interface modules pmc_interface
and pmc_particle_interface are developed specifically for PALM to
provide interface to the PMC core.
The pmc_interface is a relatively large module containing
subroutines for the upper-level nesting initiating and preparation
operations, all child-solution initialization operations,
interpolation and anterpolation operations as well as calling-routines
to the actual data transfer routines in the PMC core. All the
subroutine names in the PMC interface begin with pmci_. Similarly
all subroutines in pmc_general start with pmc_g_, in pmc_parent
with pmc_p_ and in pmc_child with pmc_c_.
Nesting initiation and initial preparations#
Initiation of a nested run. In the beginning of the PALM main
program subroutine pmci_init in the pmc_interface is called. This
subroutine calls pmc_init_model which resides in the
pmc_handle_communicator module, one of the five PMC core modules. By
calling pmc_parin this subroutine first detects if the
&nesting_parameters namelist
is given in the root namelist file (suffix _p3d) or not. If it is not found,
pmc_init_model returns such that the run will continue as a
non-nested run. If it is found, pmc_parin reads the
nesting_parameters namelist and then pmc_init_model determines the
processing-element space for each model and creates the model-specific
communicators for each models' process groups according to which model
a process belongs. These process groups are said to have different
"colors". This is done by splitting the global world communicator
MPI_COMM_WORLD by calling MPI_COMM_SPLIT according to couple id
m_my_cpl_id as the color and the global rank (the rank in MPI_COMM_WORLD)
m_my_cpl_rank of the current process.
Next, pmc_init_model creates inter-communicators for each
parent-child pair by combining the local communicators of different
colors by calling MPI_INTERCOMM_CREATE. This is done by using a copy
of MPI_COMM_WORLD as a peer communicator meaning that
MPI_INTERCOMM_CREATE is given the local communicator, the peer
communicator and the global rank of
the first process on the remote process group. This way it is able to
identify the remote group. pmc_init_model counts the number of
children of the current model and calls MPI_INTERCOMM_CREATE to
create the inter-communicators between the current model and all of
its children m_to_child_comm(i), and between the current model and
its parent m_to_parent_comm.
The next call from the main program to PMC interface is to
pmci_modelconfiguration. It makes the initial preparations for all
models by calling other PMC-interface subroutines which e.g. set up
the coordinates of each model domain (pmci_setup_coordinates),
determines the number of variables to be coupled (pmci_num_arrays),
sets up children (pmci_setup_child) and parents
(pmci_setup_parent). The last two are large subroutines making calls
to several lower-level subroutines.
Child setup. The subroutine pmci_setup_child performs the
following operations. First it calls pmc_c_childinit which is in
module pmc_child. It collects the information on the local
model-communicator m_model_comm and on the inter-communicator
m_to_parent_comm created by pmc_init_model into a childdef-type
variable me. The childdef-type is defined in the module
pmc_general. This information includes the local model communicator,
the inter-communicator and the rank of the current process and size of
the model communicator and the remote size of the
inter-communicator. Then it creates an intra-communicator from the
inter-communicator by calling MPI_INTERCOMM_MERGE. The reason why
the inter-communicators have to be merged to intra-communicators is
that the Remote Memory Access windows (RMA) used in the one-sided MPI
communication cannot employ inter-communicators, they must be based on
intra-communicators. The intra-communicator me%intra_comm
includes first all the parent processes active for me (the current
child), and then the current child processes. Then it allocates a
pointer array pes for storing the child processes. This array is an
element of the childdef-type variable me and is itself of type
pedef. The array pes in turn includes the type arraydef array
array_list which is also allocated here for each parent process
connected with the current child. To understand the data structures,
it is important to get familiar with the data types arraydef,
pedef, and childdef defined in module pmc_general. Their
definitions are listed below.
TYPE :: ij_index !< pair of indices in horizontal plane
INTEGER(iwp) :: i !<
INTEGER(iwp) :: j !<
END TYPE
TYPE :: arraydef
CHARACTER(LEN=da_namelen) :: name !< name of array
INTEGER(iwp) :: coupleindex !< ID of array
INTEGER(iwp) :: dimkey !< key for NR dimensions and array type (2 = 2d-real, 3 = 3d-real, or 22 = 2d-integer*8))
INTEGER(iwp) :: nrdims !< number of dimensions
INTEGER(iwp) :: recvsize !< size in receive buffer
INTEGER(iwp) :: sendsize !< size in send buffer
INTEGER(idp) :: recvindex !< index in receive buffer
INTEGER(idp) :: sendindex !< index in send buffer
INTEGER(iwp) :: ks !< start index in z direction (3d arrays on parent only)
INTEGER(iwp) :: ke !< end index in z direction (3d arrays on parent only)
INTEGER(iwp), DIMENSION(4) :: a_dim !< size of dimensions
TYPE(C_PTR) :: data !< pointer of data in parent space
!< c pointers are used because they can point to different data types
!< e.g. REAL(2d), REAL(3d), INTEGER, etc.
!< otherwise, separate arraydef types would be required for each of them
TYPE(C_PTR) :: sendbuf !< data pointer in send buffer
TYPE(C_PTR) :: recvbuf !< data pointer in receive buffer
TYPE(arraydef), POINTER :: next !<
TYPE(C_PTR), DIMENSION(2) :: po_data !< base pointers, pmc_p_set_active_data_array
!< sets active pointer to respective time level (e.g. u_1 or u_2)
END TYPE arraydef
TYPE :: pedef
INTEGER(iwp) :: nr_arrays = 0 !< number of arrays which will be transfered
INTEGER(iwp) :: nrele !< number of elements along x and y, same for all arrays
TYPE(arraydef), POINTER, DIMENSION(:) :: array_list !< list of data arrays to be transfered
TYPE(ij_index), POINTER, DIMENSION(:) :: locind !< i,j index local array for remote PE
END TYPE pedef
TYPE :: childdef
INTEGER(iwp) :: inter_comm !< inter communicator model and child
INTEGER(iwp) :: inter_npes !< number of PEs child model
INTEGER(iwp) :: intra_comm !< intra communicator model and child
INTEGER(iwp) :: intra_rank !< rank within intra_comm
INTEGER(iwp) :: model_comm !< communicator of this model
INTEGER(iwp) :: model_npes !< number of PEs this model
INTEGER(iwp) :: model_rank !< rank of this model
INTEGER(idp) :: totalbuffersize !< size of RMA window
INTEGER(iwp) :: win_parent_child !< MPI RMA window object for preparing data on parent AND child side
TYPE(pedef), DIMENSION(:), POINTER :: pes !< list of all child PEs on parent or list of all parents on child
END TYPE childdef
After returning from pmc_c_childinit, pmci_setup_child sets names
for the child's parent grid arrays by calling
pmc_c_set_dataarray_name in module pmc_child. It sets the name
information of each variable to be coupled in type da_namedef
structure myname. In the end of pmc_c_set_dataarray_name
subroutine pmc_g_setname of module pmc_general is called. It sets
myname%couple_index and myname%nameonchild to the childdef-type
data structure me.
Next, pmci_setup_child exchanges child- and parent-grid information
with its parent using the transfer subroutines pmc_send_to_parent
and pmc_recv_from_parent defined in the module
pmc_mpi_wrapper_mod. After this
pmci_map_child_grid_to_parent_grid is called to determine the local
index bounds ipl, ipr, jps, and jpn of the data-exchange area
in the parent-grid horizontal index space. This is the area shown by
red dashed line in Figure 1. Next, the child receives the so-called
index list from its parent by calling pmc_c_get_2d_index_list. The
index list is described below in the context of parent setup. The next
task is to create the child's parent grid arrays by calling
pmci_create_childs_parent_grid_arrays sequently for each variable to
be coupled. The list of variables to be coupled is a linked-list type
construction controlled by function pmc_c_getnextarray and based on
the name information already set by
pmc_c_set_dataarray_name. Subroutine
pmci_create_childs_parent_grid_arrays allocates the requested
child's parent-grid array, for example uc for u and associates a
temporary pointer p_3d (or p_2d if the variable in question is a
2-D array or i_2d if it is an integer 2-D array). Then it passes this
temporary pointer to the subroutine pmc_c_set_dataarray which sets
this array pointer and the array dimensions inside the structure me
for every process on the parent side i = 1, me%inter_npes. The core of
this subroutine is given here as an example on how the data structures
are typically operated in the PMC.
dims = 1
nrdims = 3
dims(1) = SIZE( array, 1 )
dims(2) = SIZE( array, 2 )
dims(3) = SIZE( array, 3 )
array_adr = C_LOC( array )
!
!-- Fill the array_list structure for every parent PE that is communicating with this child.
DO i = 1, me%inter_npes
ape => me%pes(i)
ar => ape%array_list(next_array_in_list)
ar%nrdims = nrdims
ar%dimkey = nrdims
ar%a_dim = dims
ar%data = array_adr
ENDDO
Note that the type of ar%data is C-pointer. This is because the
one-sided MPI-communication operates on raw pointers (bare starting
memory addresses) and cannot thus handle Fortran-pointers. Therefore
the PMC code includes quite a lot of pointer conversions and C-pointer
returning memory allocations using MPI_ALLOC_MEM actually embedded
in the wrapper routine pmc_alloc_mem in the module
pmc_mpi_wrapper_mod. For this reason there is the USE-statement
USE, INTRINSIC :: ISO_C_BINDING
in the declaration section of most of the PMC-modules. A C-pointer to
an array is simply the starting memory address of the array. This is
determined here by the function C_LOC(). The childdef-type
datastructure me includes the pedef-type structure pes which
contains elements for every parent process communicating with the
present child. It in turn contains the arraydef type array_list,
here shortnamed as ar, which contains all the arrays to be
coupled. This is the structure from which the final transfer buffer
will be formed in the actual child to parent data-transfer will be
extracted in pmc_c_putbuffer. This will be explained in section Data
transfer. Because ar%data is just a starting address, also the
dimensions have to be stored in the data structure.
The next phase is to prepare for the data receiving from parent that
will be done in pmc_c_getbuffer and data passing to parent that will
be done in pmc_c_putbuffer, see section Data transfer for more
details. These preparations are made by
pmc_c_setind_and_allocmem. It is important to understand that the
size of the RMA window, which is created by the parent, covers all the
processes on the receiving side (i = 1, me%inter_npes) and all the
coupled variables (j = 1, me%pes(i)%nr_arrays). However, the child
gets the data one by one in pmc_c_getbuffer. Therefore start indices
to the window are needed. These start indices are received from the
parent side by MPI_ALLTOALL in a two-dimensional array
myindex_r. The elements of myindex_r are then stored in
me%pes(i)%array_list(j)%recvindex in process- (i) and array- (j)
loops. In the same nested loops the receive buffer size is
determined. The receive buffer is not covering the whole RMA window,
instead it is only of the size of single child's parent grid array,
i.e. ar%a_dim(1)*ar%a_dim(2)*ar%a_dim(3). Maximum size of all i-
and j-values is used for all of them. Next base_array_pcis
allocated by calling pmc_alloc_mem, which is a wrapper routine in
module_pmc_mpi_wrapper_mod module which calls MPI_ALLOC_MEM and
assigns the resulting C-pointer to a Fortran pointer by
C_F_POINTER. Next the C-pointer base_ptrto the receive buffer is
set for all i and j although it is the same for all of them
because only one buffer is allocated and it is reused for all transfer
iterations i and j in pmc_c_getbuffer. This completes the
preparations for data receiving from the parent on the child side.
Next the preparations for child to parent data transfer are carried
out in the latter part of pmc_c_setind_and_allocmem. First the
send-buffer size, sendsize (size of one transfer unit in the
i-j-loop) and the start indices myindex_s are determined in loops
as follows.
bufsize = 8
myindex_s = 0
myindex_r = 0
DO i = 1, me%inter_npes
ape => me%pes(i)
DO j = 1, ape%nr_arrays
ar => ape%array_list(j)
IF ( ar%nrdims == 2 ) THEN
arlen = ape%nrele
ELSEIF( ar%nrdims == 3 ) THEN
arlen = ape%nrele * ar%a_dim(1)
ENDIF
IF ( ape%nrele > 0 ) THEN
ar%sendindex = myindex
ELSE
ar%sendindex = noindex
ENDIF
myindex_s(j,i-1) = ar%sendindex
IF ( ape%nrele > 0 ) THEN
ar%sendsize = arlen
myindex = myindex + arlen
bufsize = bufsize + arlen
ENDIF
ENDDO
ENDDO
The initial value of bufsize must not be zero, because RMA window
cannot be of zero size. Therefore an arbitrary small size of 8 is
initially given. The size of a horizontal layer of an individual array
to be transferred is given by nrele and its vertical dimension is
ar%a_dim(1). Note that nrele may be smaller than the horizontal
size of a child's parent grid array on the sending process (which is
(jpn-jps+1)*(ipr-ipl+1)), because the receiving parent process
subdomain may overlap with the sending child subdomain only partially,
see Figure 1. To indicate a passive parent process (no overlap at all
and nrele=0) noindex is set to -1. The index i-1in
myindex_s(j,i-1) is because MPI process id-numbering always starts
from zero, but the process-loop i here starts from 1. After this,
the start indices are sent to parent by MPI_ALLTOALL. Next,
base_array_cp is allocated using pmc_alloc_mem and the RMA window
is created on the intra-communicator me%intra_comm by calling
MPI_WIN_CREATE. Finally, the buffer pointers are set as follows
DO i = 1, me%inter_npes
ape => me%pes(i)
DO j = 1, ape%nr_arrays
ar => ape%array_list(j)
IF ( ape%nrele > 0 ) THEN
ar%sendbuf = C_LOC( base_array_cp(ar%sendindex) )
...
ENDIF
ENDDO
ENDDO
C_LOC returns C-pointer to the ar%sendindex-indicated entry in
base_array_cp. Here the three dots just indicate seven code lines
containing a buffer-size check and error-messaging. These code lines
are excluded from here for clarity and conciseness. This completes the
child-side preparations for child to parent transfer and the
subroutine pmc_c_setind_and_allocmem.
Next pmci_setup_child call its internal subroutine
pmci_define_index_mapping which defines the mappings from parent
grid to child grid. For example iflo(ip) and ifuo(ip)indicate the
lower and upper child grid points in the x-direction that correspond
to the parent grid point ip. Such mapping arrays are defined for all
three directions and separately for scalar nodes and staggered
velocity-component nodes in each direction. These mappings are needed in the
interpolation and anterpolation. It also determines and saves the
numbers of child-grid nodes used for anterpolation for each
parent-grid node.
In the end of pmci_setup_child there are still few operations
left. First, the consistency of the nested-grid setup is checked by
pmci_check_grid_matching. Then the child domain boundary-face areas
are computed by pmci_compute_face_areas to be used in the
mass-conservation control in
pmci_ensure_nest_mass_conservation. Lastly, the anterpolation
starting height as a function of x and y is determined by
pmci_compute_kpb_anterp. This is needed for canopy-restricted
anterpolation.
Parent setup. The subroutine pmci_setup_parent performs largely
corresponding operations as pmci_child_setup, but there are
differences, too. One difference is that a parent may have several
children while a child can only have one parent. Therefore
pmci_setup_parent handles the parent-child pairs (called couplers)
in childid-loops over the number of children of the present parent.
Another difference is that on the parent side in
pmci_set_array_pointer the temporary pointer p_3d is set to the
whole array, for instance u, instead of a coupling array like for
instance uc on the child side. Such coupling arrays do not exist on
the parent side. Moreover, because the time level swapping of the
Runge-Kutta time-integration scheme, also another temporary pointer
p_3d_sec has to be set for the second time level variable, for
instance u_2. Also, on the parent side dims has four elements
instead of three like on the child side. The first three are the
dimensions of the actual prognostic array, for instance u, and the
fourth is the vertical dimension of the corresponding child's
parent-grid array, for example uc. Perhaps the largest difference to
pmci_setup_child is that parent creates the index list, prepares the
complete parent-child mapping and finally transfers the mapping
information to child.
The index list is an integer array which maps the child index- and
subdomain space on the parent index- and subdomain space. Its
dimension is (6,index_list_size) where the six elements of the first
dimension are i- and j-index on the parent grid, i- and
j-index on the child's parent grid arrays, child process id and
parent process id. The second dimension index_list_size is the
number of grid points on the parent-grid x-y-plane subspace covered by
the child domain including the ghost-node layers, see Figure 1. Note
that the index list contains only horizontal index-information. This
is a consequence of the two-dimensional domain decomposition. The only
vertical index information needed is the vertical dimension of the
transfer domains and this is provided by dims(4). Index list is
created by parent process 0 by subroutine
pmci_create_index_list. After creating the index list it calls
module pmc_parent subroutine pmc_p_split_and_broadcast_index_list
which splits the index list into local index lists according to the
parent process id of the index-list elements and sends each local
index list to the parent process it belongs to. Then it calls
pmc_p_prepare_index_list_for_child, which arranges the data
according to the child process id it will be sent to, defines the
start indices and number of elements to be sent to each child process
and the i and j indices of the child's parent grid array. Finally
it sends these information to child processes and pmc_child module
subroutine pmc_c_get_2d_index_list receives this information as
mentioned above in the description of pmc_setup_child, and
substitutes the number of elements in me%pes(i)%nrele and the i
and j grid indices in me%pes(i)%locind(j)%i and
me%pes(i)%locind(j)%j, respectively. Here the loop index i runs
over all the remote processes of the intercommunicator me%inter_comm
(usually many of them are not involved with the current transfer and
in those loop-iterations nothing is done). The loop index j runs
over the array elements on each child process (note that these i and
j are not the grid-indices). These actions complete the mapping
between the child index- and subdomain space on the parent index- and
subdomain space.
After setting up the parent-child mapping, the variables to be coupled
are set up by calling pmci_set_array_pointer to associate the
variables to be coupled to the temporary pointer as already mentioned
above. After that step, pmc_p_setind_and_allocmem is called for each
child of the current parent. It makes the preparations for the actual
data transfer which is made through the RMA-window that is created
here. These parent-side preparations are made largely in a similar
fashion as the corresponding operations on the child side in
pmc_c_setind_and_allocmem already described above. Like in
pmc_c_setind_and_allocmem, here are two base arrays: base_array_pc
for parent to child transfer and base_array_cp for child to parent
transfer. pmc_p_setind_and_allocmem first determines the start
indices myindex_s and the necessary size of base_array_pc. It
stores the start indices in
children(childid)%pes(i)%array_list(j)%sendindex according to the
process and variable. Then it sends the myindex_s to the child side
using MPI_ALLTOALL over the intra communicator
children(childid)%intra_comm which is the same communicator as
me%intra_comm on the child side. The corresponding receive has
already been discussed above in the description of pmci_setup_child.
After this, the base array is allocated and the RMA window is created
on children(childid)%intra_comm by calling MPI_WIN_CREATE. Finally
it sets the buffer pointer to the base array in
children(childid)%pes(i)%array_list(j)%sendbuffer which is of type
C_PTR. Note that base_array_pc and base_array_cp themselves are
Fortran pointers. Below is shown the part of
pmc_p_setind_and_allocmem doing this. The three dots just indicate
five code lines containing a buffer-size check and
error-messaging. These code lines are excluded from here for clarity
and conciseness.
DO i = 1, children(childid)%inter_npes
ape => children(childid)%pes(i)
DO j = 1, ape%nr_arrays
ar => ape%array_list(j)
ar%sendbuf = C_LOC( base_array_pc(ar%sendindex) )
...
ENDDO
ENDDO
After this point the corresponding operations are made for child to
parent transfer in a similar fashion as the parent to child transfer
preparations on the child side in pmc_c_setind_and_allocmem.
Child initialization#
Nested-domain solutions can be initialized by interpolating from an existing root solution. The first-level child initial conditions can be interpolated from the root solution (which is either from a precursor run or just the initial root setting). Then the second-level child initial conditions can be interpolated from their parents which are first level children, and so on until all children have got their initial conditions. There are two alternative methods for this initial-condition interpolation
- three-dimensional initialization (default)
- homogeneous initialization (see nesting parameter homogeneous_initialization_child )
In the pmc_interface_mod, there are subroutines:
pmci_child_initialize and pmci_parent_initialize called from the
main program before the beginning of the time
integration. pmci_child_initialize is called first to make sure that
models being both child and parent have first obtained their own initial
condition before transferring data further to their own children.
In case of three-dimensional initialization, pmci_parent_initialize
simply fills the buffers of the current parent by calling
pmc_p_fillbuffer for its children to receive the data by calling
pmc_c_getbuffer in pmci_child_initialize. The subroutines
pmc_p_fillbuffer and pmc_p_fillbuffer are described in section
Data transfer. After this, pmci_child_initialize calls
pmci_interp_all and exchange_horiz for all variables to be
coupled. The subroutine pmci_interp_all employs zeroth-order
interpolation which simply means that the parent-grid value in the
child's parent-grid array, for instance uc, is copied to all
child-grid points inside the current parent-grid cell.
In case of homogeneous initialization, pmci_parent_initialize first
calls pmci_send_domain_averaged_profiles in a loop for all children
of the current parent. The subroutine
pmci_send_domain_averaged_profiles calls pmci_compute_average to
compute horizontally averaged z-profile of the parent solution and
then sends it to child by calling pmc_send_to_child. The horizontal
averaging spans only the horizontal area occupied by the current
child. This process is repeated for all variables to be coupled except
w which is simply set to zero. In pmci_child_initialize, the
vertically zeroth-order interpolated to the child grid.
Data transfer#
Upper-level data transfer subroutines. The upper-level data
transfer subroutines: pmci_datatrans, pmci_child_datatrans, and
pmci_parent_datatrans are found in the pmc interface module while
the lower-level data transfer subroutines are found in
pmc_parent_mod and pmc_child_mod. The hierarchy of these
subroutines, including also the upper-level interpolation and
anterpolation subroutines, is shown below.
pmci_datatrans
pmci_parent_datatrans
pmc_p_fillbuffer
pmc_p_getbuffer
pmci_child_datatrans
pmc_c_getbuffer
pmci_interpolation
pmci_anterpolation
pmc_c_putbuffer
The subroutine pmci_datatrans is called from the subroutine
time_integration. It branches according to the control parameters
nesting_mode and nesting_datatransfer_mode and calls
pmci_parent_datatrans and pmci_child_datatrans in a corresponding
order according to these control parameters. Subroutine
pmci_parent_datatrans calls the actual data transfer routine
pmc_p_fillbuffer or pmc_p_getbuffer depending on the transfer
direction (parent_to_child or child_to parent). After calling
pmc_p_getbuffer, it ensures as a safety measure that the velocity
components are zero inside buildings and under the terrain surface
after the anterpolation. In parent_to_child-direction subroutine
pmci_child_datatrans first calls pmc_c_getbuffer and then
pmci_interpolation. In child_to_parent-direction it first calls
pmci_anterpolation and then pmc_c_putbuffer.
Parent send. The subroutine pmc_p_fillbuffer in module
child_mod takes care of sending data to its children. It is called
separately for each child of the current parent and childid comes in
as a parameter. Then loops over the processes (ip) and arrays (j)
are run, and within them the transfer data buffer size is first
determined and stored in buf_shape. In case of normal
three-dmensional data of type REAL(wp) it is
children(childid)%pes(ip)%nrele * children(childid)%pes(ip)%array_list(j)%a_dim(4).
The latter factor is the vertical dimension of the transfer domain, not the whole
vertical size of the parent domain. Next, the sendbuffer
children(childid)%pes(ip)%array_list(j)%sendbuf which is a C-pointer
is associated to the Fortran-pointer array buf by calling
C_F_POINTER. Similarly
children(childid)%pes(ip)%array_list(j)%data is associated with
data_3d. Then the sendbuffer is filled through buf. See the truncated source
code insert below.
DO ip = 1, children(childid)%inter_npes
ape => children(childid)%pes(ip)
DO j = 1, ape%nr_arrays
ar => ape%array_list(j)
myindex = 1
...
buf_shape(1) = ape%nrele*ar%a_dim(4)
CALL C_F_POINTER( ar%sendbuf, buf, buf_shape )
CALL C_F_POINTER( ar%data, data_3d, ar%a_dim(1:3) )
...
!
!-- Copy from PALM 3d-array (e.g. u,v,...) to sendbuf in RMA window.
DO ij = 1, ape%nrele
buf(myindex:myindex+ar%a_dim(4)-1) = &
data_3d(ar%ks:ar%ke+2,ape%locind(ij)%j,ape%locind(ij)%i)
myindex = myindex + ar%a_dim(4)
ENDDO
...
ENDDO
ENDDO
Note that the ij-loop runs over the horizontal dimensions of the
transfer domain (nrele) substituting the whole vertical stride of
length ar%a_dim(1) at each loop-iteration to buf. For those
ip-loop iterations for which nrele = 0, nothing is substituted to
buf and myindex is not incremented. After completing these loops
shown above, the sendbuffer is completely filled and there is a call
to MPI_BARRIER to make sure that the child side will not proceed to
receive the data until the buffer is completely filled. There is a
corresponding call to MPI_BARRIER on the child side in the beginning
of pmc_c_getbuffer. There is also second call to call to
MPI_BARRIER right after the first one to let the parent know that
the current child has completed its receive and the parent may go on
to the next call to send to its next child, if any. The counterpart of
this second MPI_BARRIER is in the end of pmc_c_getbuffer.
For setting buf_shapeand for the C_F_POINTER-calls, there are also
corresponding branches for transfer of two-dimensional real-number
data and for two-dimensional integer-valued data. These are not shown
above but replaced by three dots for clarity and conciseness.
PMC also includes an option for using two-sided communication, but it
is not recommended in normal use as it is slower than one-sided
communication. However, note that one-sided communication is causing problems with some MPI-libraries, which can only be circumvented via setting of use_one_sided_communication = .F.. If two-sided communication is activated, the data is
substituted one variable (array) at time to bufall(ip) which is an
array of local defined type bufdef and ip is the child
target-process index as in the code inserts above. It is statically
allocated for all children(childid)%inter_npes child processes
involved and its elements contain transfer buffer buf for
real-valued data, and ibuf for integer-valued data, and the buffers
are dynamically re-allocated for each transfer of each variable. Here the
order of process and array loops is reversed, i.e. the array loop runs
outer, and the process loop inner. Data for each child target
processes is substituted in buf (or ibuf), and sent separately to
each receiving child process by calling pmc_send_to_child.
Child receive. The subroutine pmc_c_getbuffer in module
child_mod takes care of receiving data from the parent through the
RMA window which is filled by pmc_p_fillbufferas described above. It
begins with a call to MPI_BARRIER which has its counterpart in
pmc_p_fillbuffer after the filling operations as described above to
make sure that the so-called epoch is not started before the parent
has completed its buffer filling. Then again loops over the processes
(ip) and arrays (j) are run, and within them the transfer data
buffer size is first determined and stored in nr which in case of
normal three-dimensional data of type REAL(wp) is me%pes(ip)%nrele
* me%pes(ip)%array_list(j)%a_dim(1). Then the actual transfer buffer
of type C_PTR is associated to the Fortran pointer buf by calling
C_F_POINTER. After this, if nr > 0, the subroutine starts the
epoch by calling MPI_WIN_LOCK and to get the data to buf by
calling MPI_GET followed by ending the epoch by calling
MPI_WIN_UNLOCK. This method of synchronization is known as passive
target synchronization. Next the data is substituted into the
three-dimensional array data_3d. See the truncated source code
insert below.
DO ip = 1, me%inter_npes
ape => me%pes(ip)
DO j = 1, ape%nr_arrays
ar => ape%array_list(j)
...
myindex = 1
...
CALL C_F_POINTER( ar%data, data_3d, ar%a_dim(1:3) )
DO ij = 1, ape%nrele
data_3d(:,ape%locind(ij)%j,ape%locind(ij)%i) = buf(myindex:myindex+ar%a_dim(1)-1)
myindex = myindex+ar%a_dim(1)
ENDDO
...
ENDDO
ENDDO
Note that the ij-loop runs over the horizontal dimensions of the transfer
domain (nrele) substituting the whole vertical stride of length
ar%a_dim(1) at each iteration. This completes the array- and
process-loops and the whole receive sequence and finally
MPI_BARRIERis called again to inform the parent side that the
receive is completed. There is a corresponding call to MPI_BARRIER
on the parent side.
For the optional two-sided communication mode, pmc_c_getbuffer has a
receive buffer bufall similar to that on the parent side and
statically allocated for all involved me%inter_npes parent
processes. Its receive buffers bufand ibufare dynamically
re-allocated for each transfer of each variable. Naturally the array and
process loops run in the same order as on the parent side, i.e. the
array loop runs outer. Data is received to bufall(ip)%buf or ibuf by
calling pmc_recv_from_parent. All the data for the current variable
is received to bufall within this process loop. After this, but
within the same array loop, there is a second process loop to
substitute the data from buffer to the three-dimensional array. This
procedure is relatively similar to that of the one-sided communication
branch shown above.
In child to parent transfer pmc_c_putbuffer sends data from child to
parent. It works very much the same way as pmc_p_fillbuffer and it
can be understood just by studying how pmc_p_fillbuffer
works. Therefore pmc_c_putbuffer is not further explained here.
Also pmc_p_getbuffer works similarly to pmc_c_getbuffer and can be
almost completely understood just by understanding
pmc_c_putbuffer. However, there is one exception worth to be
explained here. The range of child processes in the scope can be
limited to one by an optional argument child_process_nr. If this
optional argument is present, the process loop is restricted to only
this particular process indicated by child_process_nr. If this
argument is not present, the process loops run normally from 1 to
children(childid)%inter_npes. The reason for this arrangement is in
particle coupling. It is never used in coupling the Eulerian field
variables.
Interpolation of child's boundary conditions#
As soon as a child has received all the coupled variables in its
child's parent-grid arrays, interpolation of child's boundary
conditions on its nested boundaries starts as already explained in
section Data transfer. In the pmc_interface_mod, there is an
intermediate-level calling routine pmci_interpolation for calling
the actual interpolation routines. There are three interpolation
subroutines: pmci_interp_lr for handling the left and right
boundaries, pmci_interp_sn for handling the south and north
boundaries, and pmci_interp_bt for handling the bottom and top
boundaries. Originally, it was assumed that all child domains are set
on the bottom boundary of the root domain and it was not possible to
set the bottom boundary as nested, but an elevated-nest feature has
been implemented later and the bottom-boundary handling was added into
pmci_interp_t then renamed as pmci_interp_bt. The calling routine
pmci_interpolation first calls pmci_interp_lr for all necessary
variables if nesting_bounds is not set to 'vertical_only' or
'cyclic_along_x'. It is called first for all necessary variables to
set the boundary conditions on the left boundary and then for the
right boundary. Then, similar sequence of calls to pmci_interp_sn is
conducted to set the boundary conditions on the south boundary and
then for the north boundary if nesting_bounds is not set to
'vertical_only' or 'cyclic_along_y'. Finally, the boundary conditions
are set to top and bottom (if the nested domain is elevated)
boundaries by calling pmci_interp_bt.
The actual interpolation routines, for instance pmci_interp_lr start
by setting the necessary indices which depend on the variable in
question, staggered or non-staggered as projected on the boundary
plane, and on the boundary itself, in this case left or right.
Next, a so-called boundary work-array is updated. Such a boundary
work-array, in this case work_arr_lr, which extends by one
parent-grid cell past internal subdomain boundaries is needed because
the child's parent-grid arrays here designated as parent_array must
definitely not reach beyond any internal boundaries. Otherwise
anterpolation would be messed up around the internal boundaries. The
work arrays are first filled up from the parent_array and then its
ghost-nodes are exchanged by calling MPI_SENDRECV. These work
arrays: work_arr_lr, work_arr_sn, and work_arr_bt are allocated
by pmci_allocate_workarrays and their exchange data types to
facilitate swift exchange are defined by
pmci_create_workarray_exchange_datatypes. These two subroutines are
called from pmci_define_index_mapping which in turn is called by
pmci_setup_child in the initial preparation phase.
Then, the actual interpolation operations follow and there are separate branches for all velocity components and for any scalar variable. All the algorithms employed here are introduced and explained by Hellsten et al. (2021) in detail. Therefore they are not explained here.
Anterpolation#
Anterpolation means to use the child solution for replacing the parent
solution within the subvolume occupied by the child domain (or a
subset of it). The child solution must first be restricted to the
parent grid. This is made by integrating the child solution such that
the velocity components are anterpolated onto two-dimensional faces
while scalars are anterpolated into three dimensional volumes (grid
cells), see (Clark and Hall, 1991) and (Hellsten at al., 2021). The
resulting fields are stored in child's parent-grid arrays. This
operation is done by subroutine pmci_anterp_var as described below.
After this phase is completed pmc_c_child_datatrans calls
pmc_c_putbuffer and the parent receives all the anterpolated
data directly in its variables by calling pmc_p_getbuffer.
There is a calling routine pmci_anterpolation called from
pmci_child_datatrans. This calling routine calls the actual
anterpolation routine pmci_anterp_var for all necessary variables
with the index-mapping arrays passed as arguments. Note that the
index-mappings are different for the velocity components (staggered)
and scalar variables (non-staggered). The number of
child-grid faces for each velocity component and child-grid cells for
scalars for all parent grid nodes are precomputed, stored in ijkfc,
and passed here as an argument. The anterpolation is just integration
(summation) over the child-grid nodes on the parent-grid face for
velocity components or in the parent-grid cell for scalars. The result
is stored in the corresponding child's parent-grid array.
In practice, anterpolation cannot span over the whole child domain. Narrow buffer-zones are defined just inside the nested boundaries of the child domain. The default width of these buffers is two parent-grid spacings. This can be increased by setting the parameter anterpolation_buffer_width in the &nesting_parameters namelist to a value higher than two. The reason for these buffers is that the nodes directly involved with the interpolation should not be anterpolated because it would typically lead to an unstable feedback loop and blow up of the solution.
In some cases, anterpolation may produce unphysical features in the solution. For example if a canopy drag (plant or building canopy) becomes remarkably different in child and parent due to the better resolution of child, the mean-flow velocities in the parent may increase or decrease in the area occupied by the child. This usually induces unphysical secondary flow phenomena in the parent solution. In an attempt to avoid such problems, anterpolation can be switched off in the lowest part of the child domain by setting the parameter anterpolation_starting_height in the &nesting_parameters namelist to a suitable value. Note that this parameter is a grid index, not height in metres, and it is relative to the local terrain surface. Note also, that it influences all the domains the same way, i.e. it cannot be specified separately for different domains. This feature has been tested and studied by Hellsten et al. (2021).
Mass conservation correction#
The subroutine time_integration calls the
pmc_interface_mod-subroutine pmci_ensure_nest_mass_conservation
right before the pressure-correction step to make sure that overall
mass-conservation is not violated in any of the child domains. This
is carried out by first integrating the total mass flux through all
the nested boundaries (including the bottom boundary in case of an elevated child). Then these are summed over the domain to
find out the possible mass imbalance. Then the correction velocity is
defined by dividing the imbalance by total boundary area of nested
boundaries. These areas are precalcuted within the initial
preparations. The correction velocity is then added onto the nested
boundaries with correct sign on each boundary.
PMC finalization#
In the end of a nested run, the main program calls pmci_finalize
which calls pmc_p_finalize and pmc_c_finalize. These subroutines call
MPI_FREE_MEM to release the memory allocated for the base arrays of
parent and child, respectively. Then they call MPI_WIN_FREE to free
the RMA windows.
Instructions for adding a new variable to the coupling#
If a new variable needs to be added to the set of variables to be coupled or an existing one removed, it needs intervention in three parts of the code. These are:
- in
pmci_setup_child - in
pmci_num_arrays - within the child initialization routines
pmci_child_initializeandpmci_send_domain_averaged_profiles
First, in the part of pmci_setup_child where
pmc_c_set_dataarray_name is called for each coupled variable, one has to
add (or remove) CALL pmc_c_set_dataarray_name('varname'), where
'varname'is the name of the variable in question
In pmci_num_arrays one must ensure that pmc_max_arrayis set
equal to the actual number of variables to be coupled
including the added new variables as pmc_max_array is used to allocate
me%pes(i)%array_list()and children(childid)%pes(j)%array_list().
Within pmci_child_initialize, one has to add (or remove) the
corresponding call to pmci_interp_all for three-dimensional
initialization. For homogeneous initialization one has to add (or
remove) the corresponding calls and pmci_interp_1d in
pmci_child_initialize and to pmci_compute_average and
pmc_send_to_child in pmci_send_domain_averaged_profiles.
References#
Clark, T. and Hall, W. (1991): Multi-domain simulations of the time dependent Navier-Stokes equations: benchmark error analysis of some nesting procedures, J. Comput. Phys., 92, 456–481.
Hellsten, A., Ketelsen, K., Suehring, M., Auvinen, M., Maronga, B., Knigge, C., Barmpas, F., Tsegas, G., and Moussiopoulos, N., Raasch, S. (2021): A Nested Multi-Scale System Implemented in the Large-Eddy Simulation Model PALM model system 6.0. Geosci. Model Dev., 14(6), 3185-3214, doi.org/10.5194/gmd-14-3185-2021.
